Universal Intel Chipset Drivers Updater​

Don't want to diminish your work, but wouldn't it be more useful first to confirm whether the same issue happens with the original installer to eliminate a possible root cause?

Cheers
Tom

Tom écrit:

Don't want to diminish your work, but wouldn't it be more useful first to confirm whether the same issue happens with the original installer to eliminate a possible root cause?

Cheers
Tom



Hi Tom,
Good question, but in this case testing with the original Intel installer won't eliminate the root cause – because my updater doesn't install INF files directly. It simply downloads and runs Intel's official Chipset Device Software installer. The same Intel executable does the actual work, so the audio issue happens exactly the same way when you run Intel's own installer manually.

The problem is Intel's INF package containing cAVS (*SystemcAVS.inf) – it breaks audio on some OEM systems. My updater currently doesn't warn or block it, but the upcoming version (2026.08.0018) will add a warning and automatically abort installation in silent mode. I can't fully fix this without physical access to a cAVS machine to analyze setupapi.dev.log and device binding changes.

Today I was cleaning out a cabinet and found an H110 chipset board. I had to scratch my head for a while because the hardware seemed completely dead – zero reaction to anything. Turned out it was a mining board with very strict voltage-related safeguards. If the RTC battery voltage drops below ~2.0V, many cheap controllers on these boards treat it as a "critical power rail error" and block POST. For comparison, most standard motherboards will start even without a battery.

After replacing the battery, everything booted fine. I also found a small bug in the updater code on H110 – if the updater detected only one HWID within the platform, instead of displaying the full ID (e.g., 1910 or 590F), it showed just the first digit (1 or 5). This has also been fixed in the new version 2026.08.0018.

Cheers
Marcin

FirstEver écrit:

7-Zip and Resource Hacker also do not reveal the embedded INF/CAT files.

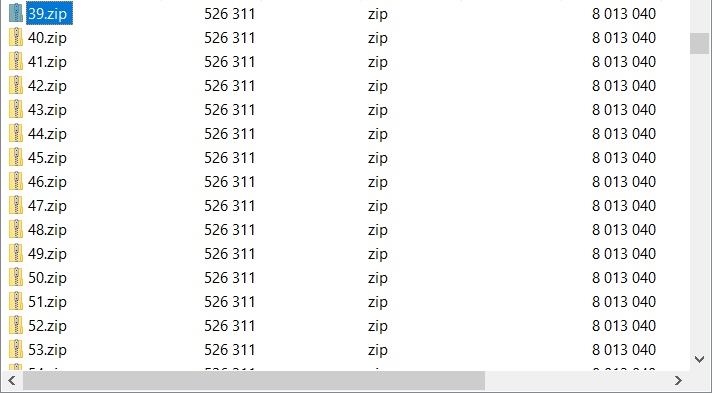

With 7-Zip, right-click SetupChipset.exe, choose Open archive > #:e
When 7-Zip open, scroll down and locate several zip files, choose someone (i.e. attachment) and you can view and extract inf/cat files inside Drivers folder.

hitman72ita écrit:

on an old gigabyte motherboard with Skylale chipset, version 2026.08.0017 totally disables internal audio (realtek), I had to use Windows 11 restore point

Same behavior here after finished installing Bluetooth 24.60.0 using default Intel installer (because Intel disabled the IT Professionals Bluetooth version).
In my case there's no need to use Restore Point, just went do Device Manager, right-click on "Intel® Smart Sound Technology BUS" under "Other devices" and reinstalled drivers.

In my case there's no need to use Restore Point, just went do Device Manager, right-click on "Intel® Smart Sound Technology BUS" under "Other devices" and reinstalled drivers.

Thank you for your reply. I just want to make sure I understand the exact steps you took—when you reinstalled the driver for the "Intel® Smart Sound Technology BUS" via Device Manager, did you use a dedicated installer downloaded from Intel’s website, or did you simply let Windows pick a driver from its own built-in list (i.e., the driver that was already present in the system) and reinstall it that way? I’m asking because I want to replicate the fix as precisely as possible.

Hi @josefrancklin,
Thanks for the tip. For a cleaner result, I first extracted using uniextract. Then extracted SetupChipset.msi and SetupChipsetx64.msi using the method you mentioned.
