Jmicron JMS-586 NVMe/USB 3.2 Controller firmware Version 10.01.00.01
- admin
-
Auteur du sujet
- Absent
- Admin
-
Administrateur
- Messages : 373
- Thanks: 170
Jmicron JMS-586 NVMe/USB 3.2 Controller firmware Version 10.01.00.01
il y a 1 jour 6 heures - il y a 1 jour 5 heuresConfiguration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060, Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Dernière édition: il y a 1 jour 5 heures par admin.
Connexion ou Créer un compte pour participer à la conversation.
- Shonk
-
- Hors Ligne
- Big Poster
-
Enregistré
- Messages : 96
- Thanks: 38
Re: Jmicron JMS-586 NVMe/USB 3.2 Controller firmware Version 10.01.00.01
il y a 14 heures 9 minutes - il y a 13 heures 56 minutes
I have a bluendless sata/nvme JMS581 that looks like that with just one slot
dumped the firmware last year but havnt been able to find anything to flash it
anyway the flasher included with this flashes my dump fine
aslong as i dont try modifying the nvram
if i try modifying the nvram it fails
i managed to brick it after a about 8 good flashes
i think i forgot to flash the firmware back complete after a fail before unplugging it
cant remember
it comes up with a weird pid that isnt detected
i tried shorting pins 1+2 of the puya chip it came up with the right vid/pid
but the flasher doesnt see it
think im going to have to program it with a ch341 its a tssop8 though (i think)
i only have test clips for sop8
any idea's?

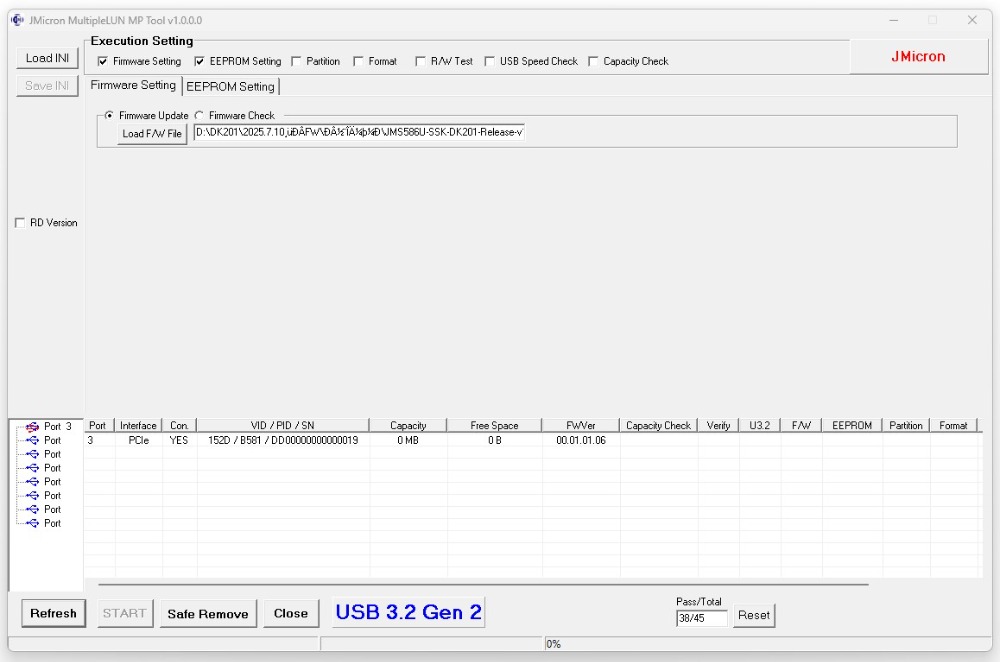

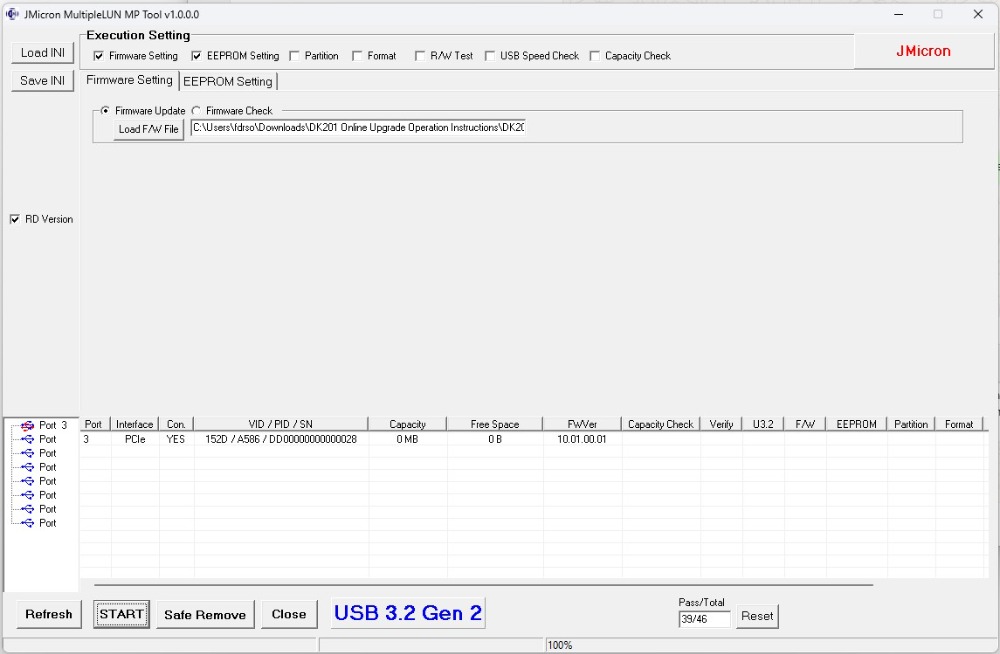

Had to untick all circled for a good flash
maybe due to my dump having the nvram in it?
and worked fine after unplugged and plugged back in
dumped the firmware last year but havnt been able to find anything to flash it
anyway the flasher included with this flashes my dump fine
aslong as i dont try modifying the nvram
if i try modifying the nvram it fails
i managed to brick it after a about 8 good flashes
i think i forgot to flash the firmware back complete after a fail before unplugging it
cant remember
it comes up with a weird pid that isnt detected
i tried shorting pins 1+2 of the puya chip it came up with the right vid/pid
but the flasher doesnt see it
think im going to have to program it with a ch341 its a tssop8 though (i think)
i only have test clips for sop8
any idea's?
Had to untick all circled for a good flash
maybe due to my dump having the nvram in it?
and worked fine after unplugged and plugged back in
Dernière édition: il y a 13 heures 56 minutes par Shonk.
