ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Réponse de TheDoomSlayer sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 1 an 2 mois #692
Hello, I have an ORICO-BM2C3-G2 enclosure (10Gbps), the chip is RTL9210 with no letters. Wich firmware and config should I use?

The problem is, it was not working with my laptop. I tried updating it with several firmwares from this topic, with most of them it is recognized by laptop but works on usb 2.0 speed only. I have eventually installed 1.25 and it seems to work fine, speeds are not geat though (400 MB/s read). So I'd like to try something newer, could anyone please help?

Connexion ou Créer un compte pour participer à la conversation.

Réponse de spike_V_sky sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 1 an 2 mois #693
@TheDoomSlayer

hi
I think you should double check if you enclouser use RTL9210B RTL9210BA(A or B).
Here there is a contacts from orico, i suggest you to send an email for a request.
From orico you should request the original firmware where you can find the config file for your device.
Last Edit:il y a 1 an 2 mois par spike_V_sky
Dernière édition: il y a 1 an 2 mois par spike_V_sky.
Les utilisateur(s) suivant ont remercié: TheDoomSlayer

Connexion ou Créer un compte pour participer à la conversation.

  • admin
  • Portrait de admin en ligne Auteur du sujet
  • Admin
  • Admin
    Administrateur
  • Messages : 553
  • Thanks: 248

Réponse de admin sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 1 an 2 mois #694
Hi all,

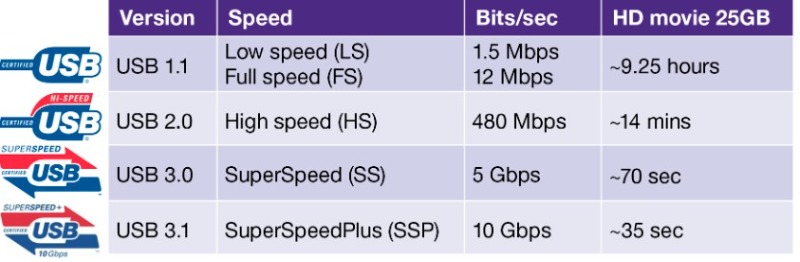

I allow myself to add that certain USB-C cable provided does not sound efficient to be able to have 10Gbs so try with another USB 3.2 cable (10Gbs) and also check that you are on a USB 3.2 port







Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Last Edit:il y a 1 an 2 mois par admin
Dernière édition: il y a 1 an 2 mois par admin.

Connexion ou Créer un compte pour participer à la conversation.

Réponse de TheDoomSlayer sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 1 an 2 mois #695
@spike_V_sky

Thank you for your reply, I already sent an email to Orico before posting here.

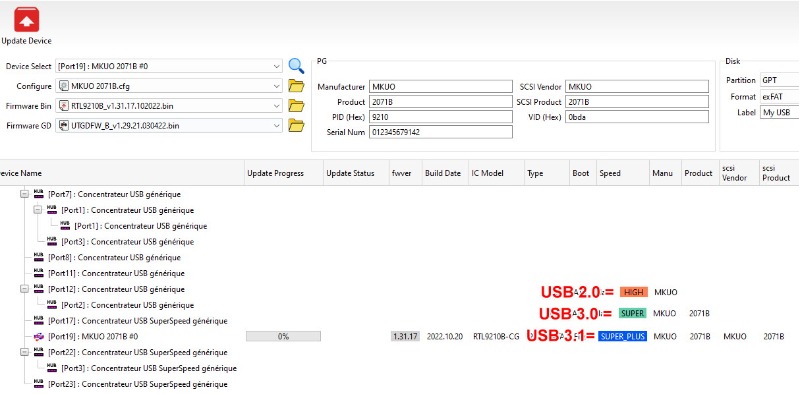

This is my controller, is it A or B?


P.S.: I am not expecting it to perform at 10Gbps, I just need a suitable stable firmware
Last Edit:il y a 1 an 2 mois par TheDoomSlayer
Dernière édition: il y a 1 an 2 mois par TheDoomSlayer.

Connexion ou Créer un compte pour participer à la conversation.

Réponse de Machi007 sur le sujet NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted il y a 1 an 2 mois #697

@xz Thank you maybe you can ask Support why an old GD firmware was used
I have updadet Orico with UTGDFW_B_v1.29.21.030422 and Orico Config
last Nubmers v1.29.21.(030422 = Month Day Year = 04.03.2022)

Hi sdefrwggerg,
can you please share your Config File RTL9210_VB_CG_Orico_0m2.cfg ?
I can't find it anywhere.
I have Orico SSD enclosure and I want to upgrade to newest FW :-)
par Machi007

Connexion ou Créer un compte pour participer à la conversation.
