ssd Question NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Replied by spike_V_sky on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #542

New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8

Hi, are there any feedback about this firmware(1.30.21.070622) ?

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Offline Topic Author
  • Admin
  • Admin
    Administrateur
  • Posts: 562
  • Thanks: 258

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #543
on my side it works very well after I use it very little


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

by admin

Please Log in or Create an account to join the conversation.

Replied by sdefrwggerg on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #544

What is the difference between UTNVME and UTGDFW? I see GD being referred to as "Firmware Golden" but I don't know what that means.

This Firmware has three parts Config, UTNVME and UTGDFW. Use UTNVME as Firmware BIN and UTGDFW as Firmware GD. These two are paired with each other, flash always both.

@killman
You can try 1 and 7 but i think you have a Hardware Problem
Reset Pin Active low or to pause the device without deselecting the device
Serial data input and output for 4 x I/O read mode

www.puyasemi.com/uploadfiles/2022/09/20220908185703573.pdf

Please Log in or Create an account to join the conversation.

Replied by Crillas on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #589

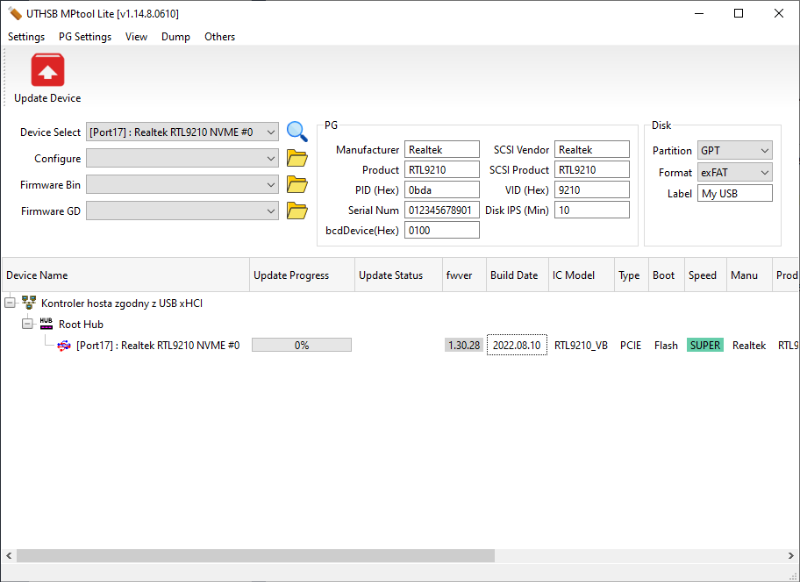

Hi, I checked the firmware on my case and it is newer than the one you recently posted.
Fw version: 1.30.28 and build date: 2022.08.10.
I would like to make a backup and post it here, but I don't know how. Could someone explain to me what software is needed to make a backup? The mptool lite can only update the firmware, if I remember correctly.

Last Edit:1 year 4 months ago by Crillas
Last edit: 1 year 4 months ago by Crillas.

Please Log in or Create an account to join the conversation.

  • admin
  • admin's Avatar Offline Topic Author
  • Admin
  • Admin
    Administrateur
  • Posts: 562
  • Thanks: 258

Replied by admin on topic NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Posted 1 year 4 months ago #595
Hello Crills ,
Yes shame but if the MPTool does not allow it, if someone else has the solution, I take


Configuration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060,  Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

by admin

Please Log in or Create an account to join the conversation.
