ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ปี 11 เดือน ที่ผ่านมา
#1158
The usb port is Type-C 3.2 Gen1
[IMG

กรุณา เข้าสู่ระบบ หรือ สมัครสมาชิกใหม่ เพื่อเข้าร่วมวงสนทนา

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ปี 11 เดือน ที่ผ่านมา - 1 ปี 11 เดือน ที่ผ่านมา
#1159
3.2 Gen1 is 5Gbit, some mainboard makers go cheap and wire Type-C ports to 5Gbit for cost cutting. A nice example are those cheap A620 Chipsets which have the option for 10Gbit both from CPU and Chipset.
I recently got a M2 SATA cheap 512GB SSD to test my Unionsine MD202 case cause I had only trouble getting my SM2263XT drive to work with it. For some reason that Intenso NVME SSD ain't playing well with anything. The MD202 works just fine with the other NVME I have around (RTS5765).
Last edit: 1 ปี 11 เดือน ที่ผ่านมา by Alien Invader.
สมาชิกต่อไปนี้บอกขอบคุณ: admin

กรุณา เข้าสู่ระบบ หรือ สมัครสมาชิกใหม่ เพื่อเข้าร่วมวงสนทนา

  • admin
  • รูปประจำตัวของ admin ผู้เขียนหัวข้อ
  • ออฟไลน์
  • Admin
  • Admin
    Administrateur
  • จำนวนโพสต์: 321
  • Thanks: 111

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ปี 11 เดือน ที่ผ่านมา - 1 ปี 11 เดือน ที่ผ่านมา
#1160

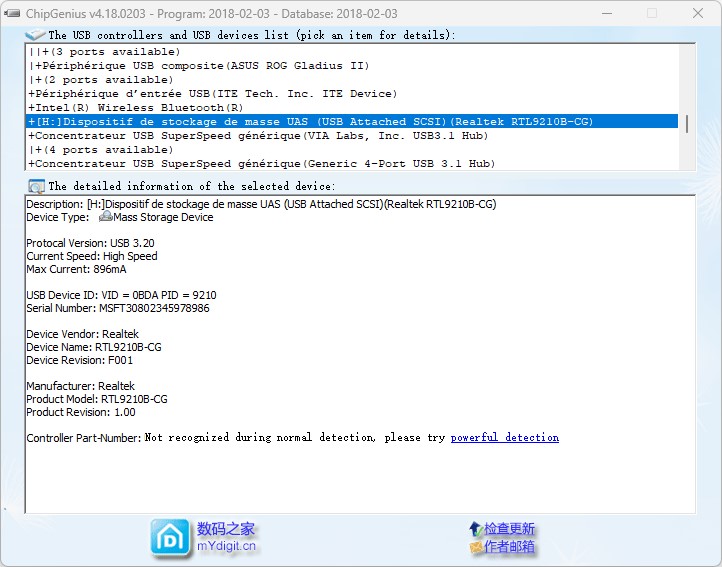

to be sure to be in USB 3.2, check with the Chipgenius utility below

the 500 Mbps instead of 1000Mbps and a speed problem due to the port or the cable as said by Alien Invader
The firmware can also but already check the port then the cable (USB-C port)


เอ�สารไฟล์�นบนี้ซ่อนสำหรับบุคคลทั่วไป
โปรดเข้าระบบ หรือลงทะเบียนเพื่อดูเอ�สารไฟล์�นบ

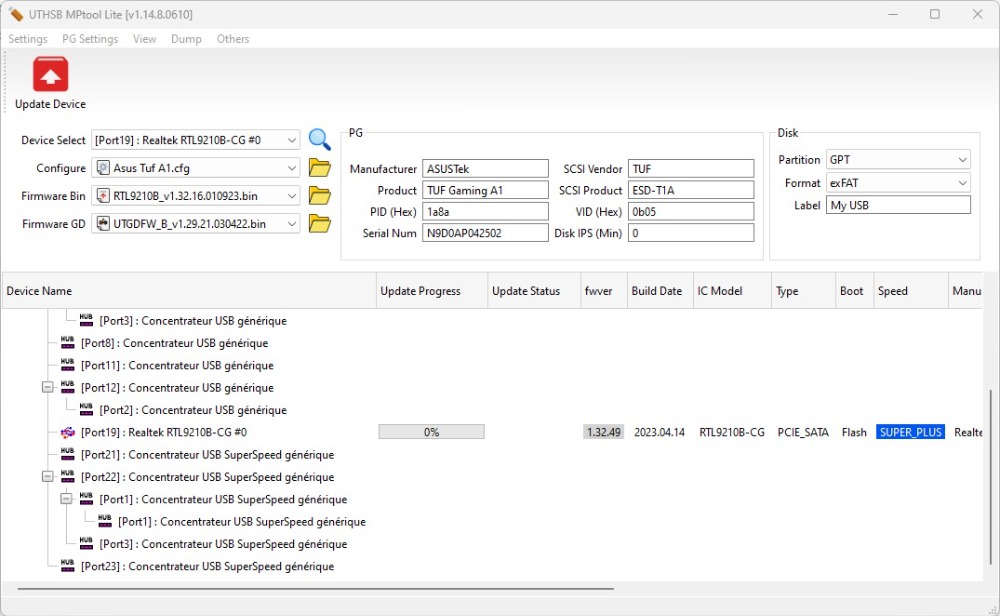

or via the update utility (Super plus)





Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

ไฟล์ที่แนบมาด้วย:

Last edit: 1 ปี 11 เดือน ที่ผ่านมา by admin.

กรุณา เข้าสู่ระบบ หรือ สมัครสมาชิกใหม่ เพื่อเข้าร่วมวงสนทนา

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ปี 11 เดือน ที่ผ่านมา
#1163

กรุณา เข้าสู่ระบบ หรือ สมัครสมาชิกใหม่ เพื่อเข้าร่วมวงสนทนา

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 ปี 11 เดือน ที่ผ่านมา
#1164
try to set Windows Power saving settings to High

กรุณา เข้าสู่ระบบ หรือ สมัครสมาชิกใหม่ เพื่อเข้าร่วมวงสนทนา
