Marvell/Aquantia AQC113, AQC113C, AQC113CS (10Gbps) Firmware Version 1.5.48

  • admin
  • Avatar de admin Autor do tópico
  • Desligado
  • Admin
  • Admin
    Administrateur
  • Fdrsoft (Admin)
  • Mensagens: 653
  • Thanks: 400

Re: Marvell/Aquantia AQC113, AQC113C, AQC113CS (10Gbps) Firmware Version 1.5.48

1 mês 6 dias atrás - 1 mês 6 dias atrás
#
Hi, yes, I have the Z890 ProArt—it's a really good motherboard. As for ASPM, I haven't checked, but my PC gives me fewer issues with sleep mode now; it goes into sleep mode without any problems.



Asus Z890 ProArt, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Steelserie Pro , Souris Razer, Boitier HUMMER, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Ultima edição : 1 mês 6 dias atrás por admin.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • chilli8733
  • Avatar de chilli8733
  • Desligado
  • Newbie
  • Newbie
    Enregistré
  • Mensagens: 1
  • Thanks: 0

Re: Marvell/Aquantia AQC113, AQC113C, AQC113CS (10Gbps) Firmware Version 1.5.48

3 semanas 2 dias atrás - 3 semanas 2 dias atrás
#
How can I flash this onto dual 10G? Is this the wrong firmware?

Code:
[INFO] Checking for Marvell network driver... [DEBUG] PnpDevice Query completed for Marvell devices [DEBUG] Found devices count: 2 [SUCCESS] Found 2 Marvell device(s) Device #1   Device ID: PCI\VEN_1D6A&DEV_04C0&SUBSYS_00011D6A&REV_03\4&31FB88A&0&00E6   Driver Version: 3.1.11.0   Provider: Marvell   INF File: oem1.inf   Status: Version OK (3.1.11.0 >= 3.1.11) Device #2   Device ID: PCI\VEN_1D6A&DEV_04C0&SUBSYS_00011D6A&REV_03\4&2570C98F&0&00E4   Driver Version: 3.1.11.0   Provider: Marvell   INF File: oem1.inf   Status: Version OK (3.1.11.0 >= 3.1.11) [SUCCESS] Driver version check passed [INFO] Enumerating NDISIO devices... [DEBUG] Executing: C:\Users\me\Downloads\40d1b2d8Marvell_AQC113_1.5.18(station-drivers.com)\FirmwareUpdate_v1.5.48\listDevices.exe [DEBUG] listDevices.exe output: listDevices x86_64-w64-mingw32-5.0-3-gfaad6c70  Available devices for NDISIO family:     NDISIO:04C0-058:00.0     NDISIO:04C0-057:00.0 [DEBUG] Parsed NDISIO device IDs: NDISIO:04C0-058:00.0 NDISIO:04C0-057:00.0 [SUCCESS] Found 2 NDISIO device(s) [INFO] Checking for Dual 10G devices... [DEBUG] Device: NDISIO:04C0-058:00.0, Bus Number: 88 (0x058) [DEBUG] Device: NDISIO:04C0-057:00.0, Bus Number: 87 (0x057) [DEBUG] Found Dual 10G adapter: NDISIO:04C0-058:00.0 (0x58) and NDISIO:04C0-057:00.0 (0x57) [DEBUG] Found Dual 10G adapter: NDISIO:04C0-057:00.0 (0x57) and NDISIO:04C0-058:00.0 (0x58) [INFO] Will process 0 standalone device(s)

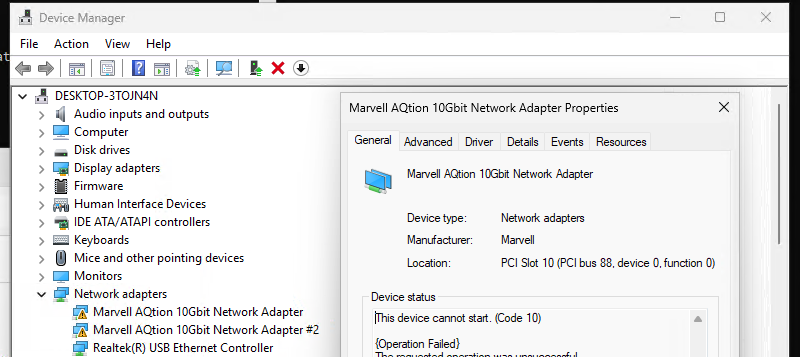

I have the "This device cannot start. (Code 10)" Issue.

Device is a "UGREEN NASync DXP6800 Pro".

It might be bricked?
Code:
.\kickstart2.exe -v kickstart2 x86_64-w64-mingw32-4.10-110-g0d62bf7 Connected to device '0000-58:00.0' Register 0x00003048: 0xffffffff : 11111111 11111111 11111111 11111111 Register 0x00003040: 0x00000001 written Register 0x00003040: 0xffffffff : 11111111 11111111 11111111 11111111 Register 0x00003040: 0xffffffff : 11111111 11111111 11111111 11111111 Register 0x00003040: 0xffffffff : 11111111 11111111 11111111 11111111 Register 0x00003040: 0xffffffff : 11111111 11111111 11111111 11111111
Ultima edição : 3 semanas 2 dias atrás por chilli8733.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • jmsth
  • Avatar de jmsth
  • Desligado
  • Newbie
  • Newbie
    Enregistré
  • Mensagens: 2
  • Thanks: 0

Re: Marvell/Aquantia AQC113, AQC113C, AQC113CS (10Gbps) Firmware Version 1.5.48

3 semanas 1 dia atrás
#
admin escreveu:
Hi, yes, I have the Z890 ProArt—it's a really good motherboard. As for ASPM, I haven't checked, but my PC gives me fewer issues with sleep mode now; it goes into sleep mode without any problems.


Agreed, it's a great board.  Based on your comments, I tried it.  I was able to upgrade my Z890 ProArt as well.  Sadly, this does not support ASPM.  After completing the upgrade, this is what I see in Linux:
Code:
84:00.0 Ethernet controller: Aquantia Corp. AQtion AQC113 NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G] (rev 03)         DeviceName: AQC113CS 10G LAN         Subsystem: ASUSTeK Computer Inc. Device 8890         Capabilities: [70] Express (v2) Endpoint, IntMsgNum 0                 LnkCtl: ASPM Disabled; RCB 64 bytes, LnkDisable- CommClk+                         ExtSynch- ClockPM+ AutWidDis- BWInt- AutBWInt- FltModeDis-

I was able to apply the older "Dirty Wake" version (from Shonk/Arie) and that looks better:
Code:
                LnkCtl: ASPM L1 Enabled; RCB 64 bytes, LnkDisable- CommClk+                         ExtSynch- ClockPM+ AutWidDis- BWInt- AutBWInt-

Hopefully someone can get Fenvi to pick up the new firmware version and release their corresponding "Dirty Wake" variant to restore ASPM support.  I'm asking ASUS the same.

PS: for those of you trying to apply this to two cards, your best option is to disable one in the BIOS as the flash always works with the first card it sees.


Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.

  • d5aqoep
  • Avatar de d5aqoep
  • Desligado
  • Poster
  • Poster
    Enregistré
  • Mensagens: 28
  • Thanks: 5

Re: Marvell/Aquantia AQC113, AQC113C, AQC113CS (10Gbps) Firmware Version 1.5.48

3 semanas 1 dia atrás - 3 semanas 1 dia atrás
#
@chilli8733

Yup. I bricked my QNAP Dual 10G card as this firmware is all pretentious about knowing how to update dual 10G cards but borks them totally.

To all reading this: Do not update your Dual 10G cards with this or previous firmware. The updater is not designed to update firmware in such scenario. If you have firmware dump of previous firmware and know how to reflash it using the JTAG debugging tools then be my guest !

You have been warned.
Ultima edição : 3 semanas 1 dia atrás por d5aqoep.

Por favor Iniciar sessão ou Criar uma conta para se juntar à conversa.
