NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- Shonk
- Offline
- Super Utilisateur
-
Enregistré
- Posts: 117
- Thanks: 42
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
4 months 1 week ago
There are 3 versions of the chip
Well 1 version of the chip but 3 versions of the pcb
NVME
SATA
SATA/NVME
my guess is you ordered the NVME only version
Well 1 version of the chip but 3 versions of the pcb
NVME
SATA
SATA/NVME
my guess is you ordered the NVME only version
Please Connexion or Create an account to join the conversation.
- lapis
- Offline
- Newbie
-
Enregistré
- Posts: 2
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
4 months 1 week ago
OK, I suppose that those item descriptions on Aliexpress can't be trusted...
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
Please Connexion or Create an account to join the conversation.
- Laroldski
- Offline
- Best Poster
-
Enregistré
- Posts: 47
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
4 months 4 days agoOK, I suppose that those item descriptions on Aliexpress can't be trusted...
It was this "CoolFish M2 SSD Case NVMe SATA Dual Protocol" for a bit over 3$.
I suppose there is no way to add SATA support by firmware or some easy mod?
@lapis If you want a great ssd enclosure for NVMe ssd's try the one in the link in black it has an RTL9210 controller the other one in grey has a JMS583 controller,their not much more money and way better built then those coolfish ones.
www.aliexpress.com/item/1005006437088311...in.29.27c11802Al6Vvk
Please Connexion or Create an account to join the conversation.
- ole258
- Offline
- Poster
-
Enregistré
- Posts: 15
- Thanks: 6
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
4 months 4 days ago - 4 months 4 days ago
I have bought a

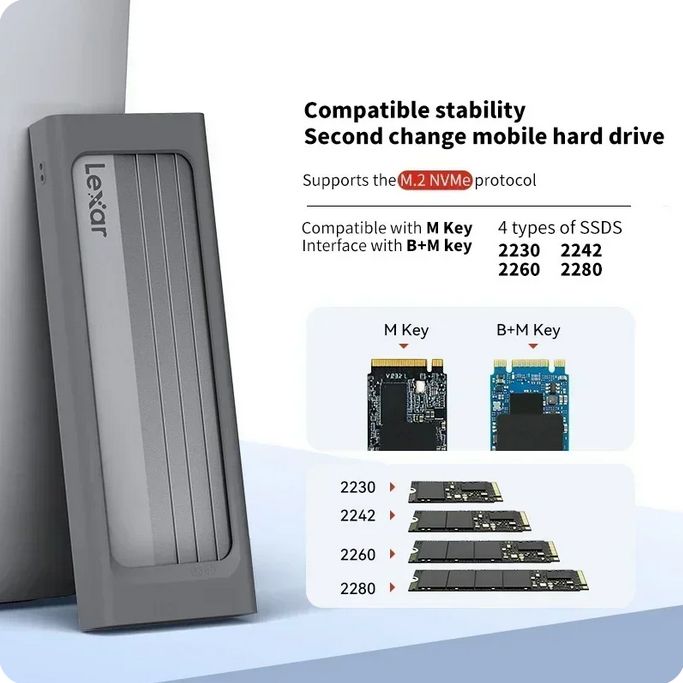

Lexar E300
NVME enclosure.
Here is the Dump:
In comparison to most other Dumps, there are much values marked as "n/a".
For example:
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
DISK_HOTPLUG = 0x0
PINMUX1 = 0x0
PINMUX2 = 0x700
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
For what are these values for?
Is it recommended to add it at the config file?
Here is the Dump:
Warning: Spoiler!
**************************************************************
Device : [Port8] : Lexar E300 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x21c4
PID : 0xb083
MANUFACTURE : "Lexar"
PRODUCT : "E300"
SERIAL : "012345683084"
SCSI_PRODUCT : "E300 "
SCSI_VENDOR : "Lexar "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x02
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
Device : [Port8] : Lexar E300 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x21c4
PID : 0xb083
MANUFACTURE : "Lexar"
PRODUCT : "E300"
SERIAL : "012345683084"
SCSI_PRODUCT : "E300 "
SCSI_VENDOR : "Lexar "
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x02
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : n/a
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
Boot Mode : Flash
FW Ver : 1.32.87
FW Build Date : 2023.08.29
IC Pkg Type : PCIE
UUID : n/a
Disconn_ForceUSB2 : false
In comparison to most other Dumps, there are much values marked as "n/a".
For example:
U2PHY = 02 f4 9b e0 e1
U3PHY = 02 d4 09 00 d5 00 80
DISK_HOTPLUG = 0x0
PINMUX1 = 0x0
PINMUX2 = 0x700
U2_MAXPWR = 0xfa
U3_MAXPWR = 0x0
ASPMDIS = 0x0
For what are these values for?
Is it recommended to add it at the config file?
Last edit: 4 months 4 days ago by ole258.
Please Connexion or Create an account to join the conversation.
- sdefrwggerg
- Offline
- Best Poster
-
Enregistré
- Posts: 30
- Thanks: 19
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
3 months 2 weeks ago
are you sure that´s a Realtek RTL9210/RTL9220 Chip inside?
Please Connexion or Create an account to join the conversation.
