NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
- admin
- Topic Author
- Offline
- Admin
-
Administrateur
- Posts: 762
- Thanks: 380
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 11 months agoConfiguration
Asus Z790 Pro Art, Intel Cpu I7 14700K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX3060, Alimentation Asus ROG 850W, Samsung SSD 990 Pro, SSD980 Pro, Clavier Roccat Vulkan , Souris Asus, Boitier NZXT H6, HP Creative SB Kratos Free Fibre 10Gb Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Please Connexion or Create an account to join the conversation.
- sdefrwggerg
- Offline
- Best Poster
-
Enregistré
- Posts: 32
- Thanks: 21
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 10 months ago - 1 year 10 months ago
No Changelog but new Firmware is available v1.30.21.070622
New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8 with Original Orico Config and many moore

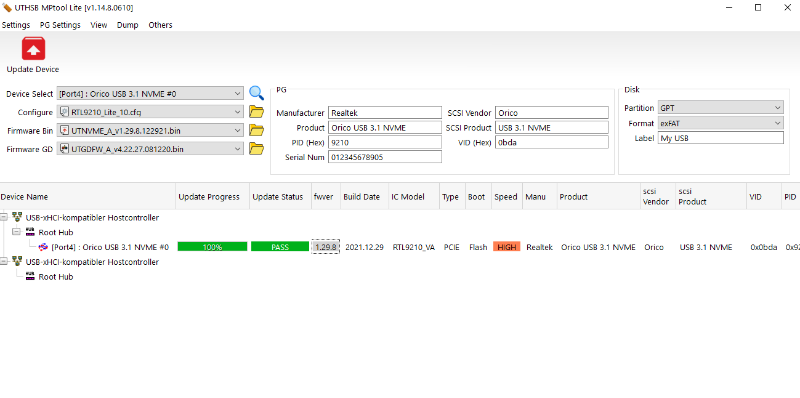

MPTOOL 1.14.8.0610 / MPTOOL Lite 1.15.0.0711
Download
Version v1.30.21.070622 2022.07.06
Version v1.30.17.062222 2022.06.22
Version v1.29.38.042522 2022.04.25
Version v1.29.12.011122 2022.01.11 Fix Compatibility with Samsung M.2 SSDs and Samsung Data Migration Tool
Version v1.29.8.122921 2021.12.29 Fix problem If your HDD/SSD could not be detected or kept disconnected from your Mac
Version v1.27.25.072921 2021.07.29 This firmware update aims to improve stability with Samsung 980 Pro and Western Digital SN550 NVMe SSDs. The power LED behavior is also improved on Windows, and Intel based Mac systems: now when safely ejected the power LED should turn off ( it may blink slowly ) indicating the drive may be safely unplugged from the computer.This update is recommended for users who have experienced connectivity problems with Samsung 980 Pro or Western Digital SN550 NVMe SSDs.
Version v1.23.9.100520 2020.10.05 01.Add customized command. 02.Update Kinsea KS10 LED behavior. 03.Fix Fulllink macbook disk speed test issue.
Version v1.23.5.09320 2020.09.03 01.Support USB HID interface. 02.Improve the compatibility for RTL9210B. 03.Support RTL9210C_PD/RTL9210C_CG. 04.Improve the compatibility for cdrom feature. 05.Add Orico customized sleep RGB LED behavior. 06.Support security api. 07.Add Kinsea KS10 LED behavior. 08.Add IOmaster M204 LED behavior. 09.Add LED SSI_6431_fp LED behavior. 10.Improve opal compatibility.
New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8 with Original Orico Config and many moore
MPTOOL 1.14.8.0610 / MPTOOL Lite 1.15.0.0711
Download
Warning: Spoiler!
Version v1.30.21.070622 2022.07.06
Version v1.30.17.062222 2022.06.22
Version v1.29.38.042522 2022.04.25
Version v1.29.12.011122 2022.01.11 Fix Compatibility with Samsung M.2 SSDs and Samsung Data Migration Tool
Version v1.29.8.122921 2021.12.29 Fix problem If your HDD/SSD could not be detected or kept disconnected from your Mac
Version v1.27.25.072921 2021.07.29 This firmware update aims to improve stability with Samsung 980 Pro and Western Digital SN550 NVMe SSDs. The power LED behavior is also improved on Windows, and Intel based Mac systems: now when safely ejected the power LED should turn off ( it may blink slowly ) indicating the drive may be safely unplugged from the computer.This update is recommended for users who have experienced connectivity problems with Samsung 980 Pro or Western Digital SN550 NVMe SSDs.
Version v1.23.9.100520 2020.10.05 01.Add customized command. 02.Update Kinsea KS10 LED behavior. 03.Fix Fulllink macbook disk speed test issue.
Version v1.23.5.09320 2020.09.03 01.Support USB HID interface. 02.Improve the compatibility for RTL9210B. 03.Support RTL9210C_PD/RTL9210C_CG. 04.Improve the compatibility for cdrom feature. 05.Add Orico customized sleep RGB LED behavior. 06.Support security api. 07.Add Kinsea KS10 LED behavior. 08.Add IOmaster M204 LED behavior. 09.Add LED SSI_6431_fp LED behavior. 10.Improve opal compatibility.
Last edit: 1 year 10 months ago by sdefrwggerg.
The following user(s) said Thank You: admin, Snuupy
Please Connexion or Create an account to join the conversation.
- sdefrwggerg
- Offline
- Best Poster
-
Enregistré
- Posts: 32
- Thanks: 21
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 10 months ago - 1 year 10 months ago
If you brick RTL9210 Driver her is a method to unbrick Drive with Reset SERIAL FLASH MEMORY Chip with 8 Pin same Procedure for JMS583.
Find a Chip on the board that is small and has 2x3 mm aspect ratio and on the top is printed P25Q40SH or FM25Q04A or PUYA P25D40H. Search for the Datasheet of it look for CS# and VCC Pin or CS# and Hardware Reset Pin in Datasheet description of Pin Configurations. There is a Hard Reset Procedure on Rom in case of bricking your device. You need to short pins 1 & 8 with tweezers then connect to USB port for 10 seconds (until you hear a ding) and then remove the tweezers (unshort) while it still plugged in and flash a working Rom via USB from here. This will force RTL9210 to start with internal ROM, not with external f/w in SPI flash.
ibb.co/PQmpVnz
try to Upload my Image her but its still imposibel maybe Admin can do this?
You can download older Firmware from Orico search for M2 NVMe协议硬盘盒休眠修改 for download click on that 下载
Find a Chip on the board that is small and has 2x3 mm aspect ratio and on the top is printed P25Q40SH or FM25Q04A or PUYA P25D40H. Search for the Datasheet of it look for CS# and VCC Pin or CS# and Hardware Reset Pin in Datasheet description of Pin Configurations. There is a Hard Reset Procedure on Rom in case of bricking your device. You need to short pins 1 & 8 with tweezers then connect to USB port for 10 seconds (until you hear a ding) and then remove the tweezers (unshort) while it still plugged in and flash a working Rom via USB from here. This will force RTL9210 to start with internal ROM, not with external f/w in SPI flash.
ibb.co/PQmpVnz
try to Upload my Image her but its still imposibel maybe Admin can do this?
You can download older Firmware from Orico search for M2 NVMe协议硬盘盒休眠修改 for download click on that 下载
Last edit: 1 year 10 months ago by sdefrwggerg.
The following user(s) said Thank You: admin
Please Connexion or Create an account to join the conversation.
- Snuupy
- Offline
- Newbie
-
Enregistré
- Posts: 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 10 months ago
What is the difference between UTNVME and UTGDFW? I see GD being referred to as "Firmware Golden" but I don't know what that means.
Please Connexion or Create an account to join the conversation.
- killman
- Offline
- Newbie
-
Enregistré
- Posts: 1
- Thanks: 0
Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx
1 year 10 months ago
hi, i need help. ugreen envelope on a rtl9210b chip and a puya p25d40sh memory chip. died while transmitting data, ssd is alive, checked in a tablet, when trying to update the software - a failure. I couldn't find a datasheet for it. maybe there other contacts need to be closed, distinguishable from 1.8 as on p25d40x
