Realtek RTL9201 Firmware 1.32.7 / 9.32.74 / 1.33.3 / 1.33.88 / 9.34.11 / 1.34.29
- Shonk
-
Konu yazarı
- Uzakta
- The Best Poster
-
Enregistré
- İletiler: 184
- Thanks: 89
- Shonk
-
Konu yazarı
- Uzakta
- The Best Poster
-
Enregistré
- İletiler: 184
- Thanks: 89
Re: Realtek RTL9201 Firmware 1.32.7 / 9.32.74 / 1.33.3 / 1.33.88 / 9.34.11 / 1.34.29
1 ay 1 hafta önce - 2 hafta 3 gün önce
I had 3 Ugreen US221 Enclosures arrive today i have 5 already they are all ASMedia ASM235CM 10Gbps Sata Enclosures
anyway the three that arrived today one was ASMedia ASM235CM the other two where RTL9201-VB-CG and are 10Gbps
so the RTL9201R is the downbin locked at 5Gbps I updated them to 1.34.29 fine from 1.33.3 that Ugreen had used
All the latest firmware's i have for all of my devices are here
github.com/Shonk/RTL92XX
here's the cfg for the Ugreen US221 RTL9201 Variant
Here's them updated to 1.34.29
anyway the three that arrived today one was ASMedia ASM235CM the other two where RTL9201-VB-CG and are 10Gbps
so the RTL9201R is the downbin locked at 5Gbps I updated them to 1.34.29 fine from 1.33.3 that Ugreen had used
All the latest firmware's i have for all of my devices are here
github.com/Shonk/RTL92XX
here's the cfg for the Ugreen US221 RTL9201 Variant
Code:
**************************************************************
Device : [Port4] : Crucial_ CT512M550SSD1 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9201
MANUFACTURE : "Ugreen"
PRODUCT : "Ugreen Storage Device"
SERIAL : "1333092759D7"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : 0x01
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x03
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a
RW_MODE : n/a
FORCE_SATA_QUIRK : n/a
Boot Mode : Flash
FW Ver : 1.33.3
FW Build Date : 2023.09.27
IC Pkg Type : SATA
UUID : n/a
Disconn_ForceUSB2 : false
Here's them updated to 1.34.29
Son düzenleme: 2 hafta 3 gün önce Düzenleyen:Shonk
Lütfen sohbete katılmak için Giriş yap ya da Hesap açın.
- admin
-
- Uzakta
- Admin
-
Administrateur
- Fdrsoft (Admin)
- İletiler: 666
- Thanks: 413
- Shonk
-
Konu yazarı
- Uzakta
- The Best Poster
-
Enregistré
- İletiler: 184
- Thanks: 89
Re: Realtek RTL9201 Firmware 1.32.7 / 9.32.74 / 1.33.3 / 1.33.88 / 9.34.11 / 1.34.29
8 saat 7 dakika önce - 4 saat 42 dakika önce
Where did you get this admin
Dont use the updater exe with RTL9210R btw it adds some weird flags to the config
one of which is force 10Gbps which is disabled on RTL9201R at the factory in the downbin process
so you only get USB 2.0 Connects after the update
using it with the Windows Gui updater and your old config is fine
With the New Command line updater
With Windows Gui Updater and correct config for my Device
Dont use the updater exe with RTL9210R btw it adds some weird flags to the config
one of which is force 10Gbps which is disabled on RTL9201R at the factory in the downbin process
so you only get USB 2.0 Connects after the update
using it with the Windows Gui updater and your old config is fine
With the New Command line updater
Code:
C:\Realtek_RTL9201VB_1.35.24>rtk_fwupdate_signed
[INFO] Loaded config: C:\Realtek_RTL9201VB_1.35.24\config.ini
[INFO] rtk_fwupdate v1.0.0.60820 - Firmware Update Tool
[INFO] Bin: C:\Realtek_RTL9201VB_1.35.24\RTL9201VB_v1.35.24.072426.bin
[INFO] Rescue: C:\Realtek_RTL9201VB_1.35.24\RTL9201VB_gd_v4.32.88.082923_signed.bin
[INFO] Config: C:\Realtek_RTL9201VB_1.35.24\RTL9201.cfg
[INFO] LED: (none)
[INFO] Running as administrator
[INFO] Expected FW version: 1.35.24, build date: 072426
[INFO] Scanning for devices...
[INFO] Found device: \\.\PhysicalDrive1
[INFO] Current FW version: 1.34.29, build date: 011325 (yyyymmdd: 20250113)
[INFO] FW version differs: expected 1.35.24, current 1.34.29
[INFO] Proceeding with firmware update...
[INFO] Firmware update completed successfully.
[INFO] Waiting for device to reconnect...
[INFO] Device reconnected: \\.\PhysicalDrive1
[INFO] New FW version: 1.35.24, build date: 20260724

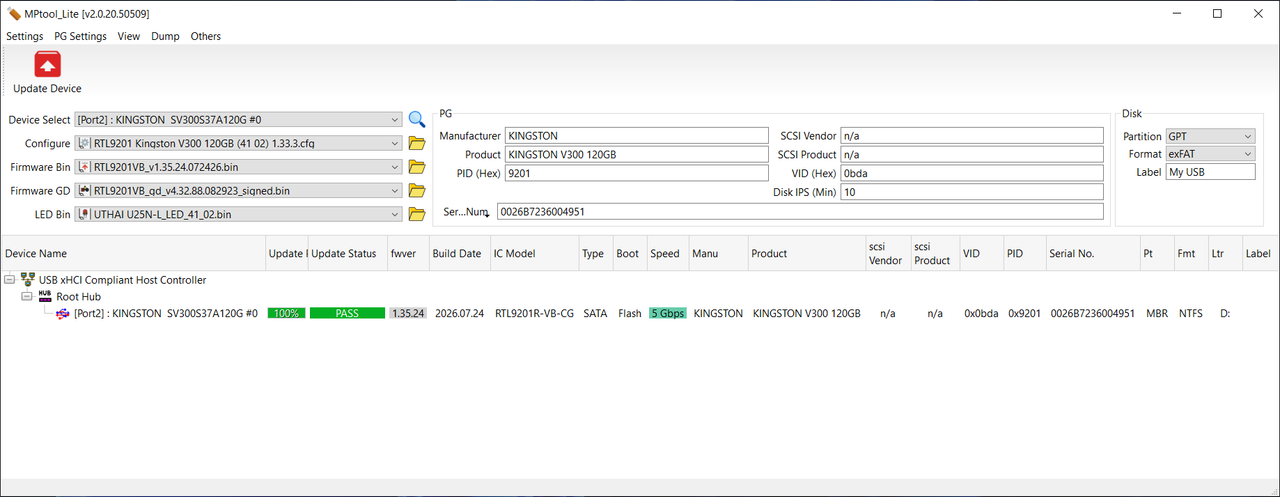

With Windows Gui Updater and correct config for my Device
Son düzenleme: 4 saat 42 dakika önce Düzenleyen:Shonk
