NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Jul1us
  • Jul1us Profilbild
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Inlägg: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

5 dagar 9 timmar sedan - 5 dagar 9 timmar sedan
#
Its not a quirk you have it ticked


you just ; out the scsi line if you want id passthrough

;SCSI_PRODUCT = "RTL9201"
;SCSI_VENDOR = "Realtek
Ah that makes sense, thanks :)
Last edit: 5 dagar 9 timmar sedan by Jul1us.

Please Logga in eller Skapa ett konto to join the conversation.

  • Shonk
  • Shonk Profilbild
  • Offline
  • The Best Poster
  • The Best Poster
    Enregistré
  • Inlägg: 164
  • Thanks: 71

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 dag 13 timmar sedan
#

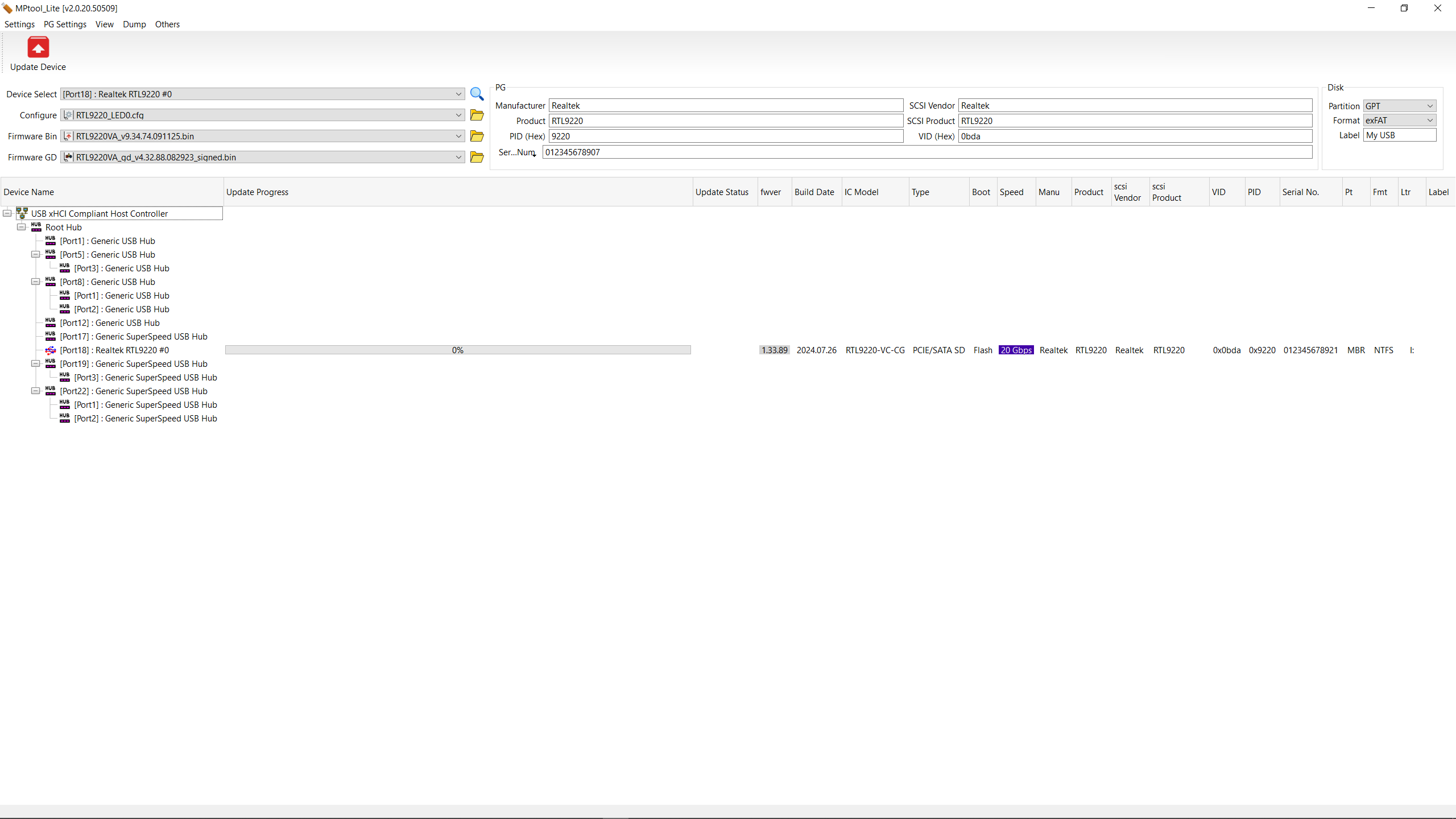

My RTL9220-VC-CG Turned up it came with 1.33.89 firmware

if i flash RTL9220_LED0.cfg it updates fine but its not setup for my device ofc

I made a custom config which results in a failed flash and a brick
I have found the problem setting CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00 causes the failed flash
CUSTOMIZED_LED = 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 flashes fine

am i missing something to be able to set CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00
an LED bin maybe?
the LED isnt working btw with CUSTOMIZED_LED = 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

[code/VID = 0xbda
PID = 0x9220
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9220"
SCSI_PRODUCT = "RTL9220"
SERIAL = "012345678921"
DISK_IPS_THRES = 10
LED = 0x1
HW_LED_CFG = 0x0
CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF = 0x0
UART_DBG_PIN = 100

;ITGZ Defaults
FORCE_PCIE_QUIRK = 0x40000
SUSPEND_DISK_OFF = 0x7[/code]


[img
Code:
************************************************************** Device : [Port3] : Realtek RTL9220 #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x9220 MANUFACTURE : "Realtek" PRODUCT : "RTL9220" SERIAL : "012345678921" SCSI_PRODUCT : "RTL9220         " SCSI_VENDOR : "Realtek " USB_SELF_PWR : n/a DISK_HOTPLUG : n/a LED : 0x01 PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : 0x0a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : 0x00 FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : 0x00040000 FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x64 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : 0x00000000 CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : 0x07 SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : n/a RAID_CFG : n/a RW_MODE : n/a FORCE_SATA_QUIRK : n/a Boot Mode : Flash FW Ver : 1.33.89 FW Build Date : 2024.07.26 IC Pkg Type : PCIE/SATA SD UUID : n/a Disconn_ForceUSB2 : false

Please Logga in eller Skapa ett konto to join the conversation.

  • Jul1us
  • Jul1us Profilbild
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Inlägg: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 dag 10 timmar sedan
#
Could it be because your cfg has space at the end of CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00?

Please Logga in eller Skapa ett konto to join the conversation.

  • Shonk
  • Shonk Profilbild
  • Offline
  • The Best Poster
  • The Best Poster
    Enregistré
  • Inlägg: 164
  • Thanks: 71

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 dag 9 timmar sedan - 1 dag 9 timmar sedan
#
Im not sure what you mean exactly but
i had to unbrick it about 4 or 5 times trying to find out what was causing it in the config

Code:
brick CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00 fine CUSTOMIZED_LED = 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Last edit: 1 dag 9 timmar sedan by Shonk.

Please Logga in eller Skapa ett konto to join the conversation.

  • Jul1us
  • Jul1us Profilbild
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Inlägg: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 dag 9 timmar sedan - 1 dag 9 timmar sedan
#
I mean here:

VID = 0xbda
PID = 0x9220
MANUFACTURE = "Realtek"
SCSI_VENDOR = "Realtek"
PRODUCT = "RTL9220"
SCSI_PRODUCT = "RTL9220"
SERIAL = "012345678921"
DISK_IPS_THRES = 10
LED = 0x1
HW_LED_CFG = 0x0
CUSTOMIZED_LED = 33 00 00 00 00 00 00 00 00 00 00 00 00 00 00 <---
SUSPEND_LED_OFF = 0x0
UART_DBG_PIN = 100

;ITGZ Defaults
FORCE_PCIE_QUIRK = 0x40000
SUSPEND_DISK_OFF = 0x7
Last edit: 1 dag 9 timmar sedan by Jul1us.

Please Logga in eller Skapa ett konto to join the conversation.
