Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 년 1 월 전 - 1 년 1 월 전
#3281
Bonjour étrange qu’il soit si vieux le firmware sinon vous avez la possibilité de revenir à l’origine avec cette manipulation sinon. pour mettre à jour avec le fichier de configuration d’origine ou par défaut celui du paquet

Station-Drivers - Firmware recovery from USB 3.2/NVMe enclosures

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier HUMMER, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.
Last edit: 1 년 1 월 전 by admin.

Please Log in or 회원가입하기! to join the conversation.

  • Calbrac
  • Calbrac'의 아바타
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • 게시물: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 년 1 월 전
#3341

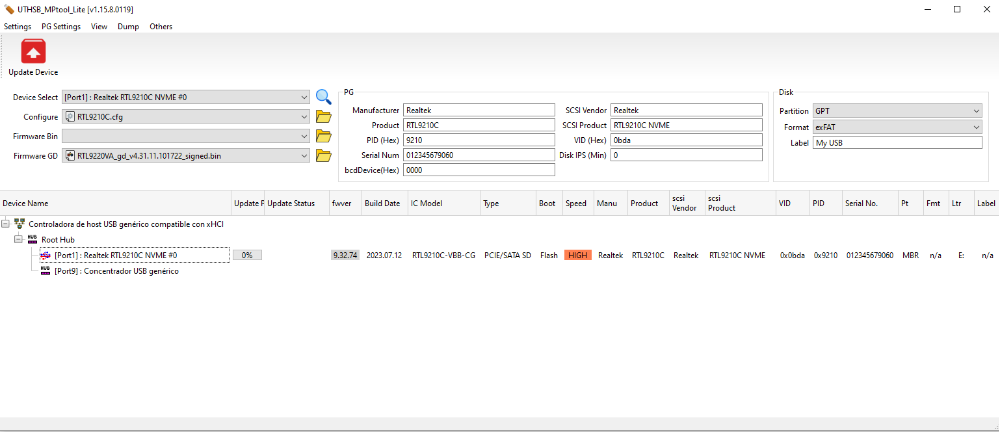

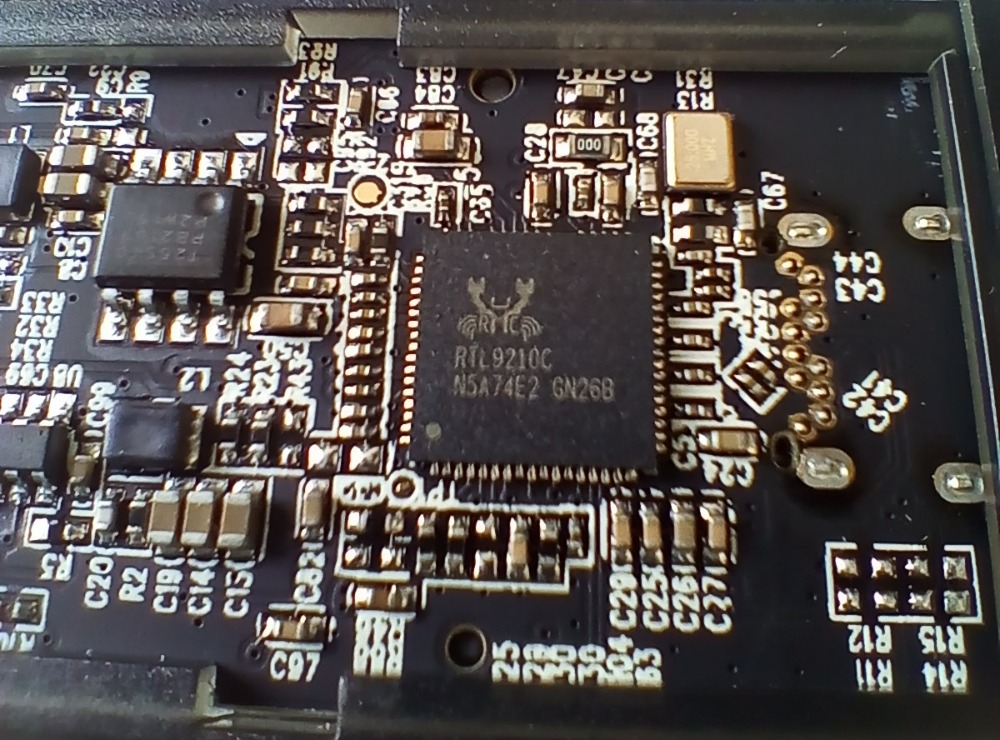

Hi everyone, I would like to know if anyone has had the experience or encountered the RTL9210C driver. I have read the entire post from top to bottom and I can't find any reference to it. I have also downloaded all the available firmwares without being able to find the missing .bin. I have also had no luck searching the web. Maybe it is a re-written or fake chip?

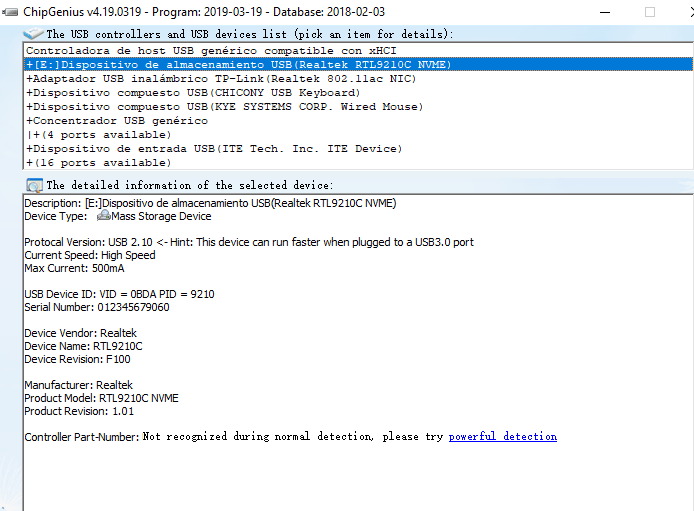

I have started this search because I can't get it to connect at a speed other than USB2.1. I have already changed all the cables (I even bought a Lenovo cable certified as 10mbps) and I have tried on several computers without success.

I would appreciate any information in advance. Thanks



Please Log in or 회원가입하기! to join the conversation.

  • admin
  • admin'의 아바타 Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • 게시물: 452
  • Thanks: 215

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 년 1 월 전
#3346
Hi it is true the RTL9210C version is less frequent, the most frequent is the B version

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier HUMMER, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Log in or 회원가입하기! to join the conversation.

  • D-One
  • D-One'의 아바타
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • 게시물: 2
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 년 3 주 전
#3394
To enable things from the firmware .cfg do we need to remove the semicolon? Is it the symbol for a code comment?

For example to enable 10min idle do I have to remove the ";" from the 2nd line below?

;10 minutes of idle time will disable pcie power
;PCIE_PWRCUT_THRES = 0xa

Cheers

Please Log in or 회원가입하기! to join the conversation.

  • TheGiolly
  • TheGiolly'의 아바타
  • Offline
  • poster 3
  • poster 3
    Enregistré
  • 게시물: 10
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

1 년 3 주 전
#3396
Yes, you need to remove the semicolon

Please Log in or 회원가입하기! to join the conversation.
