ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • spike_V_sky
  • spike_V_sky'의 아바타
  • Offline
  • poster 3
  • poster 3
    Enregistré
  • 게시물: 10
  • Thanks: 3

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 년 3 월 전
#542
New firmware for RTL9210B - v1.30.21.070622 / RTL9210 A 1.29.8
Hi, are there any feedback about this firmware(1.30.21.070622) ?

Please Log in or 회원가입하기! to join the conversation.

  • admin
  • admin'의 아바타 Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • 게시물: 319
  • Thanks: 110

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 년 3 월 전
#543
on my side it works very well after I use it very little

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Log in or 회원가입하기! to join the conversation.

  • sdefrwggerg
  • sdefrwggerg'의 아바타
  • Offline
  • regular poster
  • regular poster
    Enregistré
  • 게시물: 32
  • Thanks: 21

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 년 3 월 전
#544
What is the difference between UTNVME and UTGDFW? I see GD being referred to as "Firmware Golden" but I don't know what that means.

This Firmware has three parts Config, UTNVME and UTGDFW. Use UTNVME as Firmware BIN and UTGDFW as Firmware GD. These two are paired with each other, flash always both.

@killman
You can try 1 and 7 but i think you have a Hardware Problem
Reset Pin Active low or to pause the device without deselecting the device
Serial data input and output for 4 x I/O read mode

www.puyasemi.com/uploadfiles/2022/09/20220908185703573.pdf

Please Log in or 회원가입하기! to join the conversation.

  • Crillas
  • Crillas'의 아바타
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • 게시물: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 년 2 월 전 - 2 년 2 월 전
#589

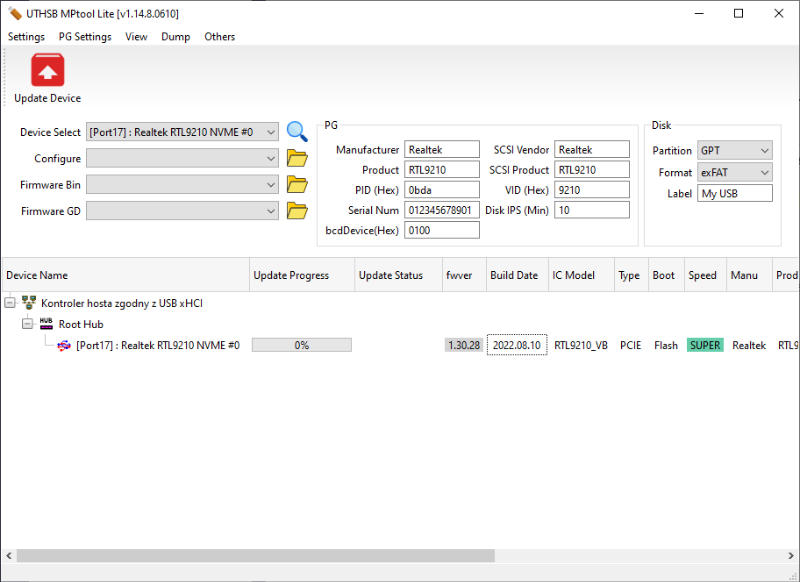

Hi, I checked the firmware on my case and it is newer than the one you recently posted.
Fw version: 1.30.28 and build date: 2022.08.10.
I would like to make a backup and post it here, but I don't know how. Could someone explain to me what software is needed to make a backup? The mptool lite can only update the firmware, if I remember correctly.

Last edit: 2 년 2 월 전 by Crillas.

Please Log in or 회원가입하기! to join the conversation.

  • admin
  • admin'의 아바타 Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • 게시물: 319
  • Thanks: 110

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

2 년 2 월 전
#595
Hello Crills ,
Yes shame but if the MPTool does not allow it, if someone else has the solution, I take

Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Log in or 회원가입하기! to join the conversation.
