Realtek RTL9220(VA/VB) NVMe/USB 3.2 Controller firmware Version 9.34.55

in realtek RTL9210B it´s in config and look like this:

LED Light Profile
LED = 0x3
HW_LED_CFG = 0x1
CUSTOMIZED_LED = 02 01 07 0c 0d 05 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF = 0x3

and so on.. Of course you have to know the gear settings otherwise it stays black.

Here it is in dump, thank you very much


**************************************************************
Device : [Port17] : KINGSTON  SFYRD2000G #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9220
MANUFACTURE : "Ugreen"
PRODUCT : "Ugreen Storage Device"
SERIAL : "133890720580"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x01
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x0f
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 42 00 02 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : 0x00000005
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.33.89
FW Build Date : 2024.07.26
IC Pkg Type : PCIE/SATA SD
UUID : n/a

Disconn_ForceUSB2 : false




name it RTL9220_VB_Ugreen.cfg for B Version
RTL9220_VA_Ugreen.cfg for A Version

The version number looks very peculiar Version 9.34.55 and not v 1.34.55 It is only for 9220A and two GDFW

GDFW_9220VA Version: 4.32.88.082923
GDFW_9220VADP Version: 4.32.88.082923
On your first Post its RTL9220_B risk is hight to brik it.

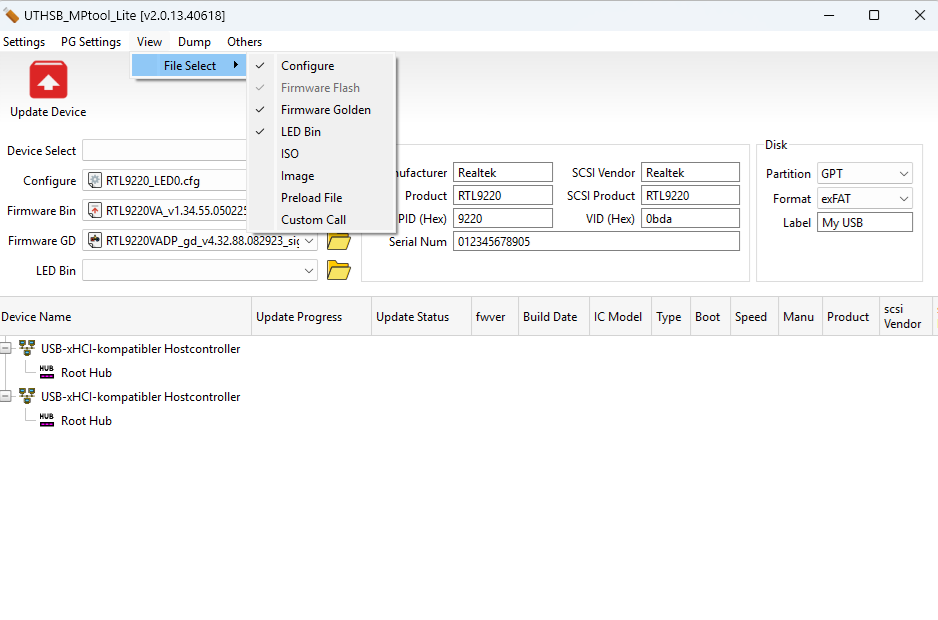

  Maybe you also need a Led.bin file for you RGB



Thank you yes I think so too because after the firmware update the LEDs are no longer active so I think you need the famous led.bin file which is not found

When the case transmits data, the gradient of the RGB light is automatically generated, which makes for a cool visual experience. This also speaks in favor of programmed lighting control.

VID : 0x0bda
PID : 0x9220
MANUFACTURE : "Ugreen"
PRODUCT : "Ugreen Storage Device"
SERIAL : "133890720580"
DISK_HOTPLUG : 0x01
LED : 0x03
DISK_IPS_THRES : 0x0f
CUSTOMIZED_LED : 42 00 02 00 00 00 00 00 00 00 00 00 00 00 00
DIS_SHOW_EMPTY_DISK : 0x01UART_DBG_PIN : 0x64
SUPPORT_HID : 0x00000005
HW_LED_CFG = 0x1

You can try to active Hardware light Profile with ;HW_LED_CFG = 0x1 and without " ; "
Or ask Ugreen for the Firmware.  www.ugreen.com/pages/contact-us
Rgb lights only generates heat and consumes unnecessary electricity without the performance should be better.
